EVO™ FIXTURE KITS


ModErn vehicles require a smart modern repair system

 Adding Car-O-Liner's EVO Universal Fixturing kit to your Frame Alignment Bench will open a new world of possibilities such as:

  • Holding for parts replacement at OEM specifications while welding, bonding and or riveting.

  • Pulling force isolation so as to not damage adjacent undamaged areas while pulling

  • Additional vehicle anchoring points as required by some OEM's



With three configurations, the modular EVO system easily evolves into a multitude of configurations for addressing your repair needs. These universal kits work for every vehicle year, brand and model saving you the cost of expensive specific equipment. With the combination of EVO and Vision2 X3, your body shop can fulfill the market demands and certified quality process, from the first damage assessment right through to repair and delivery.

BASIC ANCHORING KIT

EXTENDED ANCHORING KIT

HOLDING & FIXTURING


FEATURES AND BENEFITS

  • OEM APPROVED & required by many vehicle manufacturers

  • STRONG — vice-like grip for safe, secure holding

  • BOLTING, CLAMPING OR BRACING — isolate pulling force by holding adjacent areas

  • UNIVERSAL — fits any car, van, SUV or light truck on the road, no need to rent or buy extra fixtures

  • MODULAR — limited components that, when combined, meet your repair needs

  • UPGRADEABLE — start with EVO 1 and add EVO 2, EVO 3 or other offered combinations

  • COMPATIBLE — With the Car-O-Tronic Vision2 electronic measuring system

EVO FIXTURE KITS

EVO 1 - BASIC ANCHORING KIT


EVO 1 is a standard package for anchoring and holding. With the increased use of advanced and ultra high strength steels, holding while pulling has become a necessity for all vehicles. The EVO system makes that job easier and safer, while also making your bodyshop more efficient and profitable thanks to a speedier process.

The EVO system is made up of the optimum number of components and is available in three packages. Each package complements the other.

EVO 1
EVO 2

EVO 2 - EXTENDED ANCHORING KIT


EVO 2 provides additional equipment that compliments EVO 1. EVO 2 comes with special tools for rear-axle bracket, torque bar extensions and adjustable holders.

EVO is a modular system that grows as your needs grow. Start with EVO 1, then add EVO 2 or 3 as needed. Another example of how Car-O-Liner moves forward as you grow, never obsolete.

EVO 3

EVO 3 - HOLDING & FIXTURING


EVO 3 is a universal fixture system, which, combined with EVOs 1 and EVO 2, can handle all known models on the market. EVO 3 is unlike anything on the market today. Truly a Universal Fixturing Kit that enables parts replacements at factory specifications without the need to rent or purchase fixtures as new car models become available.

One EVO 1-3 package and you are ready for any vehicle on the road for holding while pulling and parts replacement. Together with Car-O-Tronic you are assured of precision each and every time you use the kit. No worries about damaged fixtures, unavailability of rental fixtures and no need to burden your profit margin with rental fees and purchases.

Approved by many OEM’s and required by Tesla, Porsche, Mercedes, Audi...

VIDEOS

Videos

EVO Fixture Kits

EVO Fixture Kits

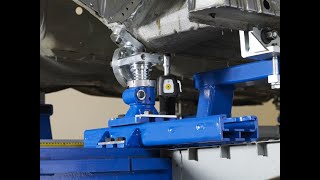

Car-O-Liner EVO Fixture Kits

Car-O-Liner EVO Fixture Kits

01:22
Play Video

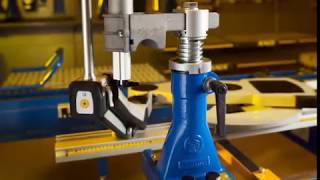

Car-O-Liner EVO 1 - BASIC ANCHORING KIT

Car-O-Liner EVO 1 - BASIC ANCHORING KIT

02:08
Play Video

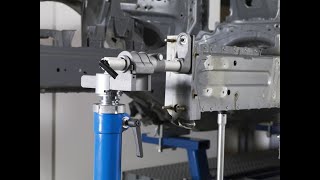

Car-O-Liner EVO 2 - EXTENDED ANCHORING KIT

Car-O-Liner EVO 2 - EXTENDED ANCHORING KIT

02:35
Play Video

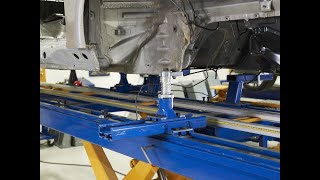

Car-O-Liner EVO 3 - HOLDING & FIXTURING

Car-O-Liner EVO 3 - HOLDING & FIXTURING

05:13
Play Video

BROCHURES

Brochure

Click for Brochure


Click for Brochure
